Product Features
- Flanged PN16/PN40
- PN40 Rated 1/2” to 2”
- PN16 Rated 21/2” to 4”
- RPTFE (15%) Seats
- PTFE/Viton Stem Seals
- Full Bore
- ISO 5211 Direct Mount
- Fire Safe Design
Technical Data
| Max Pressure | 40 Bar (1/2”-2”) 16 Bar (2 1/2”- 4”) |
| Working Temperature | -25oC to +200oC |
| Please Note | Torque - Raw torque with no safety added |

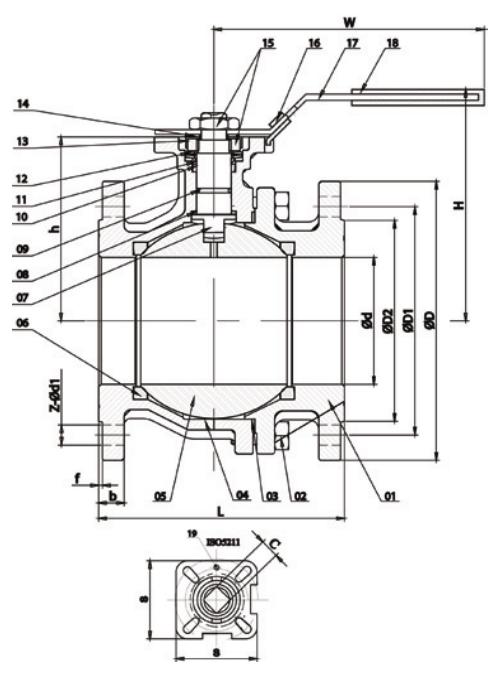

Product Dimensions

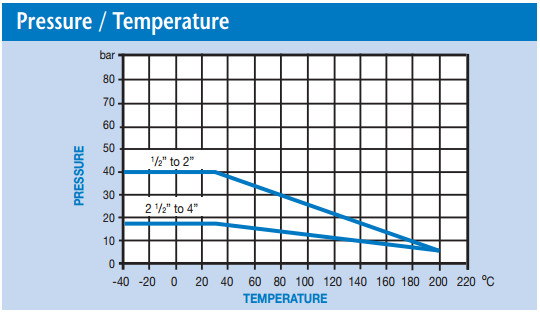

Pressure / Temperature

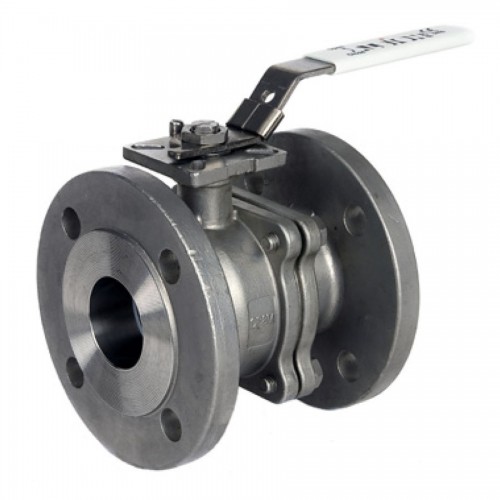

Flanged Ball Valve PN16/40 316
- Brand: All Stainless Ltd
- Product Code: Flanged Ball Valve PN16/40 316
-
£50.95
