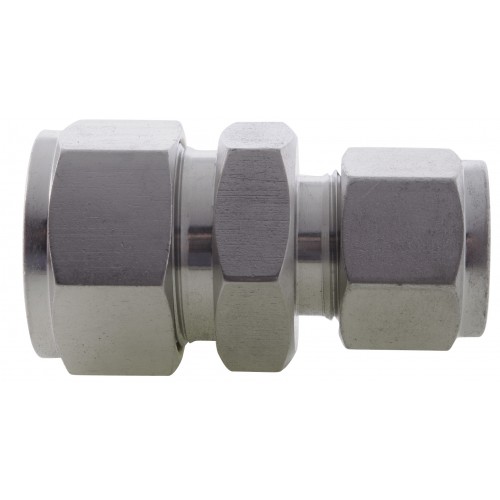

Product Features
- 316 Stainless Steel
- Metric Sizes 4mm to 25mm
- Siler Plated Nuts
Technical Data
H TUBE
E TUBE
A
B
C
C2
D
D2
F
G HEX
J HEX
K HEX
Kg/100
6
4
25.4
41
16.1
14.5
18.5
16.9
2.4
13
14
11
3.1
8
6
27.4
43.8
16.9
16.1
19.3
18.5
4.8
13
16
14
4.2
10
6
28.6
45.0
17.7
16.1
20.1
18.5
4.7
13
19
17
5.2
12
6
29.4
47.8
23.5
16.1
22.7
18.5
4.7
13
22
22
7.3
12
10
31
50.0
23 5
16.1
22.7
20.1
8.0
19
22
22
9.0
15
12
31.8
52.0
25 1
17.7
22.7
22.7
8.0
22
24
24
11.1
16
12
31,8
53.4
25.1
23.5
22.7
22.7
9.5
22
22
24
12.3
20
12
33.3
54.9
25.1
23.5
22.7
22.7
9.5
22
25
29
15.1
22
15
37.3
54.9
25.1
23.5
27.0
22.7
9.5
22
32
29
18.7
25
12
37.3
60.8
31.8
23.5
27.0
22.7
9.5
22
30
38
22.2
25
16
37.3
60.8
31.8
25.1
27.0
22.7
12.7
25
38
38
23.8
25
20
37.3
60.8
31.8
25.1
27.0
22.7
12.7
30
38
38
24.6
Product Dimensions
