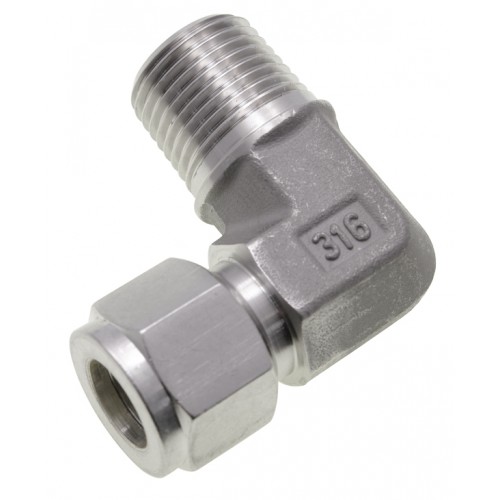

Product Features
- 316 Stainless Steel
- Fractional Sizes 1/8" to 1"
- Silver Plated Nuts
Technical Data
| E TUBE | H THREAD | A | A2 | B | C | D | F HEX | G | H A/F | Kg/100 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | 1/8 | 19.1 | 19.1 | 9.5 | 13.5 | 28.6 | 11.1 | 2.4 | 12.7 | 2.7 |
| 3/16 | 1/8 | 19.8 | 19.1 | 9.5 | 14.3 | 27.8 | 12.7 | 3.2 | 12.7 | 2.8 |
| 14 | 1/8 | 20.6 | 19.1 | 9.5 | 15.1 | 28.2 | 14.3 | 4.8 | 12.7 | 2.9 |
| 14 | 1/4 | 20.6 | 23.8 | 14.3 | 15.1 | 28.2 | 14.3 | 4.8 | 12.7 | 3.4 |
| 14 | 3/8 | 22.4 | 26.2 | 14.3 | 15.1 | 29.7 | 14.3 | 4.8 | 17.5 | 5.2 |
| 14 | 1/2 | 24.4 | 33.0 | 19.1 | 15.1 | 31.8 | 14.3 | 4.8 | 20.6 | 5.9 |
| 3/8 | 1/4 | 23.0 | 25.4 | 14.3 | 16.7 | 30.6 | 17.5 | 7.1 | 14.3 | 5.2 |
| 3/8 | 3/8 | 23.0 | 28.6 | 14.3 | 16.7 | 30.6 | 17.5 | 7.1 | 14.3 | 5.9 |
| 3/8 | 1/2 | 25.9 | 33.0 | 19.1 | 16.8 | 33.3 | 17.5 | 7.1 | 20.6 | 7.5 |
| 1/2 | 1/4 | 25.9 | 28.2 | 14.2 | 22.9 | 36.1 | 22.2 | 7.1 | 20.6 | 8.9 |
| 1/2 | 3/8 | 25.0 | 27.4 | 14.3 | 23.0 | 35.3 | 22.2 | 8.7 | 17.5 | 9.5 |
| 1/2 | 1/2 | 25.0 | 33.3 | 19.1 | 23.0 | 35.3 | 22.2 | 10.3 | 17.5 | 11.2 |
| 5/8 | 1/2 | 27.0 | 34.1 | 19.1 | 23.8 | 36.5 | 25.4 | 11.1 | 23.8 | 12.9 |
| 3/4 | 1/2 | 29.8 | 33.3 | 19.1 | 24.6 | 39.7 | 28.6 | 11.1 | 23.8 | 15.1 |
| 3/4 | 3/4 | 29.8 | 36.9 | 19.1 | 24.6 | 39.7 | 28.6 | 15.9 | 23.8 | 18.3 |
| 1 | 3/4 | 35.7 | 42.1 | 19.1 | 31.4 | 48.8 | 38.1 | 15.9 | 31.8 | 30.9 |
| 1 | 1 | 36.83 | 46.5 | 19.1 | 31.2 | 49.0 | 38.1 | 22.4 | 34.9 | 32.5 |
Product Dimensions
